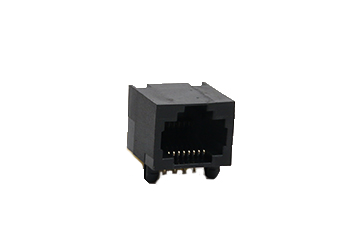

RJ45 Jack

Home > Communication Equipment > RJ45 Jack

5JA-1X1-8P8C

Pitch：1.02mm，R/A

Material
Contact:	Copper alloy
Plating	Gold-3U,6U,15U,30U,50U
Plastic	PBT, UL 94 V-0

Electrical
Standard	/	/
Rated voltage	150V	/
Rated current	1.5A	/
Wire range	/	/
Contact resistance	/
Insulation resistance	1000MΩ
Withstand Voltage	/

Mechanical
Temperature range	-40 ~ +105℃
Max.Torque	/
Strip length	/

Size
Pitch	1.02mm
Positions	8
