2.0mm Pin Header Series
Home > Electronic Connector > 2.0mm Pin Header Series

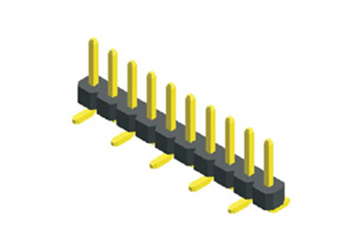

HY1004-04

Pitch : 2.0mm , SMT,  1.5A



PDF Download




Material
TerminalsCopper alloy

plating

According to order request

PlasticPBT，UL94V-0
Electrical
Standard//
Rated voltage//
Rated current 1.5A/
Wire range//
Contact resistance20mΩ Max.(intial).
Insulation resistance 500MΩ Min
Withstand Voltage600V AC
Mechanical
Temperature range-40°C~+105°C
Max.Torque/
Strip length/
Size
Pitch2.0mm
poles 1 - 40
