Cixi Wan Hai Electronics Co., Ltd.

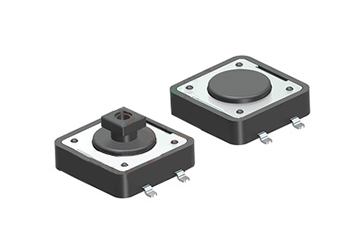

Tactile Switches Series

Pitch：5.0mm，SMT

Material
Contact	Copper alloy
plating	According to order request
Plastic	High Temperature, Thermoplastic

Electrical
Standard	/	/
Rated voltage	/	/
Rated current	/	/
Wire range	/	/
Contact resistance	100mΩ Max.(intial).
Insulation resistance	100 MΩ Min. 500VDC
Withstand Voltage	100VAC 1 minute.

Mechanical
Temperature range	-25°C~+70°C
Operating life	100,000cycles.
Strip length	/

Size
Pitch	5.0mm
poles	4
