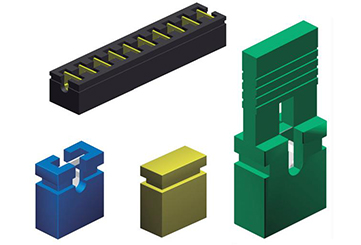

HY1156

Pitch：2.54mm



PDF Download





Material
ContactsCopper Alloy
Plated

According to order request

InsultatorTemperature(UL 94V-0)
Electrical
Standard//
Rated voltage//
Rated current //
Wire range//
Contact resistance30mΩ max.(initial).
Insulation resistance 500MΩ min.
Withstand VoltageAC 250V PER MINUTE
Mechanical
Operating temperature-40 ~ +105℃
 Temperature/
Strip length/
Size
Pitch2.54mm
poles 1-10
