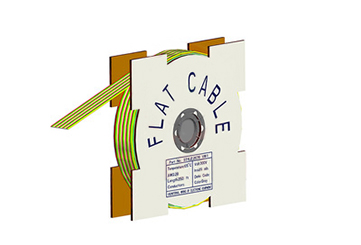

HY1152

Pitch：1.27mm , IDC/Soldering/Crimp



PDF Download





Material
Contacts/
Conductor wire

copper

InsultatorPVC
Electrical
Standard//
Rated voltage300V/
Rated current //
Wire range//
Contact resistance/
Insulation resistance 1000MΩ min.
Withstand Voltage500V AC 1 minute.
Mechanical
Operating temperature/
 Temperature-20 ~ 105℃
Strip length/
Size
Pitch1.27mm
poles 10-64
