MINI DIN Series
Home > Electronic Connector > MINI DIN Series

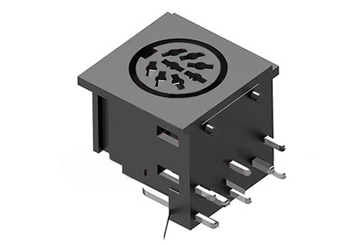

HY1148-08

Pitch：10.0/15.0mm , right angle

PDF Download





Material
ContactsCopper alloy

Shell

Steel

InsultatorPBT
Electrical
Standard//
Rated voltage30V/
Rated current 1.0A/
Wire range//
Contact resistance30mΩ max.
Insulation resistance 1000MΩ min.
Withstand Voltage500V AC 1 minute.
Mechanical
Operating temperature-40 ~ +105℃
Storage temperature-20 ~ +80℃
Strip length/
Size
Pitch10.0/15.0mm
poles 3-8
