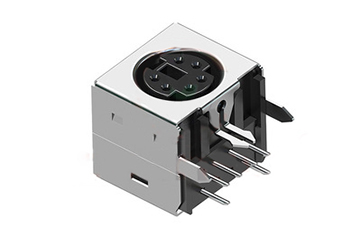

HY1148-02

Pitch：2.5mm , right angle



PDF Download





Material
ContactsCopper alloy

Shell

Steel

InsultatorThermoplastic UL 94 V-0.
Electrical
Standard//
Rated voltage30V/
Rated current 1.0A/
Wire range//
Contact resistance30mΩ max.
Insulation resistance 1000MΩ min.
Withstand Voltage500V AC 1 minute.
Mechanical
Operating temperature-40 ~ +105℃
Storage temperature-20 ~ +80℃
Strip length/
Size
Pitch2.5mm
poles 4-8
