HY1091

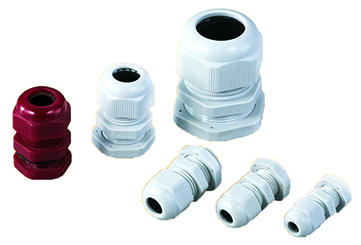

PG-Length Nylon Cable Glands

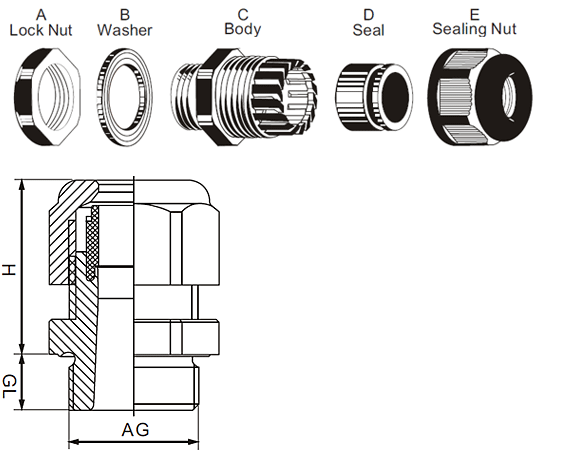

Model	mm	H mm	GL mm	mm
PG 7	3-6,5	21	15	15
PG 7	2-5	21	15	15
PG 9	4-8	21	15	19
PG 9	2-6	22	15	19
PG 11	5-10	25	15	22
PG 11	3-7	25	15	22
PG 13,5	6-12	27	15	24
PG 13,5	5-9	27	15	24
PG 16	10-14	28	15	27
PG 16	7-12	28	15	27
PG 21	13-18	31	15	33
PG 21	9-16	31	15	33
PG 29	18-25	39	15	42
PG 29	13-20	39	15	42
PG 36	22-32	48	18	53
PG 36	20-26	48	18	53
PG 42	32-38	49	18	60
PG 42	25-31	49	18	60
PG 48	37-44	49	18	65
PG 48	29-35	94	18	65
