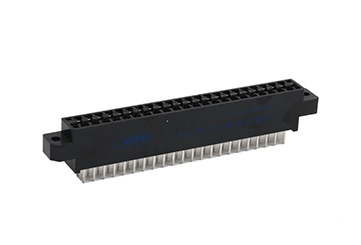

Cixi Wan Hai Electronics Co., Ltd.

Material
Contacts	Brass/Phosphor Bronze
Plating	Gold and Cutting Tin over Nickel
Plastic	Glass Filled PBT UL94V-0,Black

Electrical
Standard	/	/
Rated voltage	/	/
Rated current	2.0A	/
Wire range	/	/
Contact resistance	30mΩ Max.(intial).
Insulation resistance	1000MΩ Min
Withstand Voltage	AC 100V/Min

Mechanical
Temperature range	-40°C~+105°C
Max.Torque	/
Strip length	/

Size
Pitch	3.96mm
poles	44
