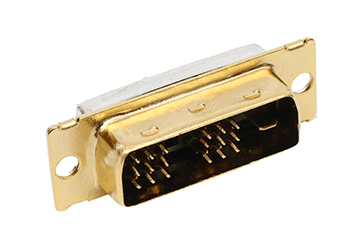

HY1067-03

Pitch : 1.905mm , Solder

PDF Download





Material
InsulatorPBT+30%Glass Fiber(UL 94V -0)
ContactBrass
Board lockCopper alloy
Contact  Plated/
Electrical
Standard//
Rated voltage//
Rated current//
Wire range //
Contact resistance30mΩ max.
Insulation resistance 1000MΩ/DC500V
Withstand Voltage AC500V/1Min
Mechanical
Temperature range -40°C~+105°C
Max.Torque/
Strip length/
Size
Pitch1.905mm
Poles 19
