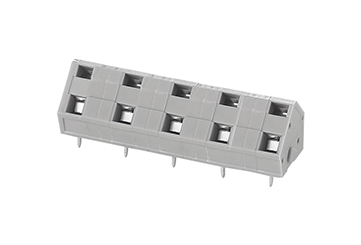

JM245-10.0

Pitch : 10.0mm , 300V , 15A



PDF Download




Material
Pin headerBrass，Tin plated
Wire guardStainless steel(SUS301)
PlasticPA66，UL94V-0
Electrical
StandardUL IEC
Rated voltage300V450V
Rated current 15A 17A
Wire range28-12AWG2.5mm2
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand VoltageAC2000V/1Min
Mechanical
Temperature range-40°C~+105°C
Max.Torque+250°C 5秒
Strip length5-6mm
Size
Pitch10.0mm(.394")
poles 1P-XXP
