Male MCS Connectors
Home > Terminal Blocks > Male MCS Connectors

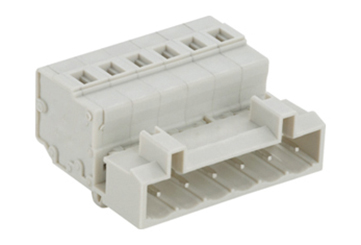

HY4500/4580-05A

Pitch : 5.0/5.08mm , 300V , 15A



PDF Download




Material
ClampCopper alloy,Sn plated
Wire guardStainless steel
PlasticPA66，UL94V-0
Electrical
StandardUL IEC
Rated voltage300V250V
Rated current 15A 16A
Wire range28-12AWG2.5mm2
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand VoltageAC2000V/1Min
Mechanical
Temperature range-40°C~+105°C
Max.Torque+250°C 5秒
Strip length8-9mm
Size
Pitch5.0mm,5.08mm
poles 2P-24P
