WS Din Rail Terminal Blocks
Home > Terminal Blocks > WS Din Rail Terminal Blocks

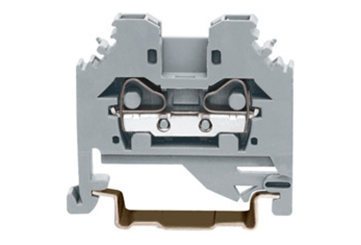

WS-2.5-SD

Pitch : /,  600V , 15A

PDF Download




Material
Screw/
TerminalBrass，Ni Plated
PlasticPA66，UL94V-0
Electrical
StandardUL IEC
Rated voltage600V800V
Rated current 15A24A
Wire range28-14AWG0.2-2.5mm2
Internal Cylindrical Gage/
Stripping Length9mm
Rated Surge Voltage8KV
Mechanical
Temperature range-40°C~+105°C
Tightening Torque/
Size
T/W/End plate5/42.5/2.5mm

Height (NS35:7.5/NS35:15/N32)

38/45.5mm
