WS Din Rail Terminal Blocks
Home > Terminal Blocks > WS Din Rail Terminal Blocks

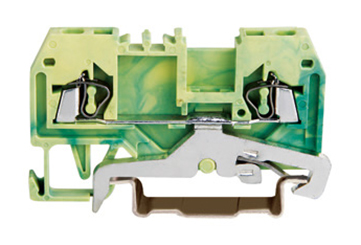

WS-6-PE

Pitch : /,  600V , 30A



PDF Download




Material
Screw/
TerminalBrass，Ni Plated
PlasticPA66，UL94V-0
Electrical
StandardUL IEC
Rated voltage600V800V
Rated current 30A 41A
Wire range24-10AWG0.2-6.0mm2
Internal Cylindrical Gage/
Stripping Length13mm
Rated Surge Voltage8KV
Mechanical
Temperature range-40°C~+105°C
Tightening Torque/
Size
T/W/End plate8/74.5/2.5mm

Height (NS35:7.5/NS35:15/N32)

40/47.5mm
