WS Din Rail Terminal Blocks
Home > Terminal Blocks > WS Din Rail Terminal Blocks

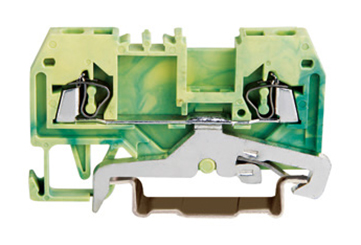

WS-2.5-PE

Pitch : /,  600V , 15A


PDF Download




Material
Screw/
TerminalBrass，Ni Plated
PlasticPA66，UL94V-0

Electrical
StandardUL IEC
Rated voltage600V800V
Rated current 15A 24A
Wire range28-14AWG0.2-2.5mm2
Internal Cylindrical Gage/
Stripping Length9mm
Rated Surge Voltage8KV

Mechanical
Temperature range-40°C~+105°C
Tightening Torque/

Sizeomega replica uhren
T/W/End plate5/53/2.5mm

Height (NS35:7.5/NS35:15/N32)

35.5/43mm
