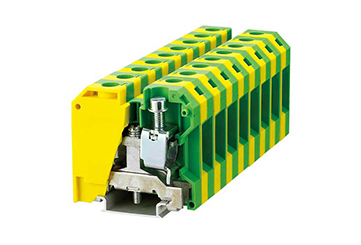

SAK Din Rail Terminal Blocks
Home > Terminal Blocks > SAK Din Rail Terminal Blocks

EK35/35

Pitch : /, M6

PDF Download




Material
Tightening Torque:Screw Thread/Tightening TorqueM6.0/2.5Nm
Tightening Torque(Fixing Screw):Screw Thread/Tightening TorqueM4.0/1.2Nm
PlasticPA66，UL94V-0
Electrical
StandardUL IEC
Rated voltage//
Rated current //
Wire range14AWG4.0-35mm2
Internal Cylindrical Gage/
Stripping Length20mm
Rated Surge Voltage/
Mechanical
Temperature range-40°C~+105°C
Tightening Torque

/

Size
T/W/End plate16/58/-mm

Height (NS35:7.5/NS35:15/N32)

60/67.5mm
