UK Din Rail Terminal Blocks
Home > Terminal Blocks > UK Din Rail Terminal Blocks

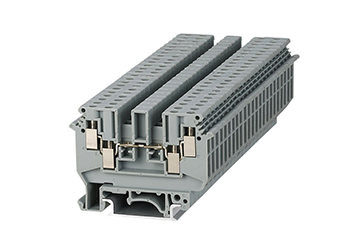

UDK4

Pitch : /, M3 , 300V , 30A



PDF Download




Material
ScrewM3.0，Steel，Ni Plated
TerminalBrass，Ni Plated
PlasticPA66，UL94V-0
Electrical
StandardUL IEC
Rated voltage300V630V
Rated current 30A 32A
Wire range24-10AWG0.2-4.0mm2
Internal Cylindrical GageA4
Stripping Length8mm
Rated Surge Voltage8KV
Mechanical
Temperature range-40°C~+105°C
Tightening Torque

0.5N.m

Size
T/W/End plate6.2/63.5/1.5mm

Height (NS35:7.5/NS35:15/N32)

47/54.5/52.5mm
