UK Din Rail Terminal Blocks
Home > Terminal Blocks > UK Din Rail Terminal Blocks

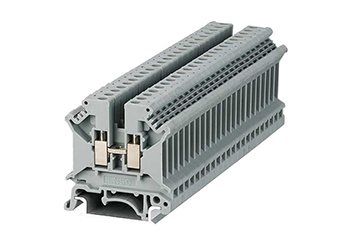

UK5N

Pitch : /, M3 , 600V , 30A

PDF Download




Material
ScrewM3.0，Steel，Ni Plated
TerminalBrass，Ni Plated
PlasticPA66，UL94V-0
Electrical
StandardUL IEC
Rated voltage600V800V
Rated current 30A 32A
Wire range24-10AWG0.2-4.0mm2
Internal Cylindrical GageA4
Stripping Length8mm
Rated Surge Voltage8KV
Mechanical
Temperature range-40°C~+105°C
Tightening Torque0.5N.m
Size
T/W/End plate6.2/42.5/1.6mm

Height (NS35:7.5/NS35:15/N32)

47/54.5/52mm
