High Current Terminals
Home > Terminal Blocks > High Current Terminals

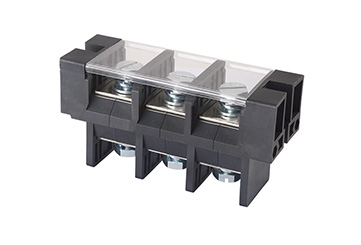

EX778S-35.0

Pitch：35.0mm , M10, 600V, 300A

PDF Download




Material
ScrewM10，Steel，Ni Plated
TerminalBrass，Tin Plated
PlasticPA66，UL94V-0
Electrical
StandardUL IEC
Rated voltage600V1000V
Rated current 300A 300A
Wire range3/0-500AWG150mm2
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand VoltageAC3000V/1Min
Mechanical
Temperature range-40°C~+105°C
Max.Torque102KG.CM
Size
Pitch35.0mm
poles 1P-12P
