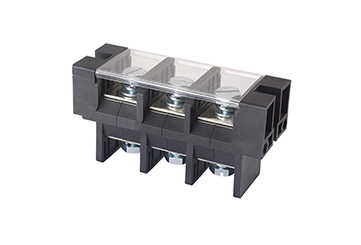

EX678S-27.0

Pitch：27.0mm , M8, 600V, 170A

PDF Download




Material
ScrewM8.0，Steel，Ni Plated
TerminalBrass，Tin Plated
PlasticPA66，UL94V-0
Electrical
StandardUL IEC
Rated voltage600V1000V
Rated current 170A 170A
Wire range10-2/0AWG50mm2
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand VoltageAC3000V/1Min
Mechanical
Temperature range-40°C~+105°C
Max.Torque60KG.CM
Size
Pitch27.0mm
poles 1P-15P
