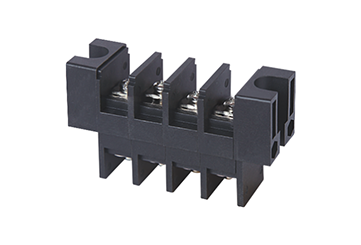

EX478-16.0

Pitch：16.0mm , M5, 600V, 65A

PDF Download




Material
ScrewM5.0，Steel，Ni Plated
TerminalBrass，Tin Plated
PlasticPA66，UL94V-0
Electrical
StandardUL IEC
Rated voltage600V1000V
Rated current 65A 76A
Wire range14-6AWG16mm2
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand VoltageAC2500V/1Min
Mechanical
Temperature range-40°C~+105°C
Max.Torque25KG.CM
Size
Pitch16.0mm(.630")
poles 1P-15P
