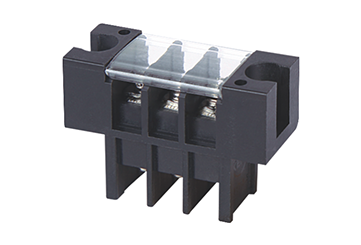

EX278S-11.0

Pitch：11.0mm , M4, 300V, 30A

PDF Download




Material
ScrewM4.0，Steel，Ni Plated
TerminalBrass，Tin Plated
PlasticPA66，UL94V-0
Electrical
StandardUL IEC
Rated voltage300V750V
Rated current 30A 32A
Wire range22-10AWG4.0mm2
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand VoltageAC2000V/1Min
Mechanical
Temperature range-40°C~+105°C
Max.Torque18KG.CM
Size
Pitch11.0mm(.433")
poles 2P-15P
