High Current Terminals
Home > Terminal Blocks > High Current Terminals

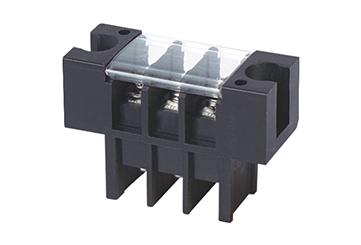

EX178S-8.5

Pitch：8.5mm , M3, 300V, 20A

PDF Download




Material
ScrewM3.0，Steel，Ni Plated
TerminalBrass，Tin Plated
PlasticPA66，UL94V-0
Electrical
StandardUL IEC
Rated voltage300V450V
Rated current 20A 24A
Wire range22-12AWG2.5mm2
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand VoltageAC2000V/1Min
Mechanical
Temperature range-40°C~+105°C
Max.Torque10KG.CM
Size
Pitch8.5mm(.335")
poles 2P-15P
