Single Row Barrier Terminals
Home > Terminal Blocks > Single Row Barrier Terminals

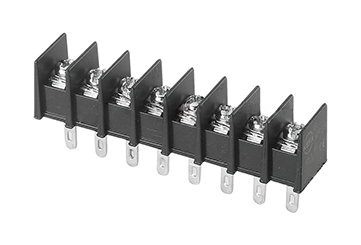

EX55H-10.0

Pitch: 10.0mm , M4, 300V, 20A



PDF Download




Material
ScrewM4.0，Steel，Ni Plated
TerminalBrass，0.8t，Tin Plated
PlasticPA66，UL94V-0

Electrical
StandardUL IEC
Rated voltage300V750V
Rated current 20A 32A
Wire range22-12AWG4.0mm2
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand VoltageAC2000V/1Min

Mechanical
Temperature range-40°C~+105°C
Max.Torque1.2Nm (10.6Lb.in)

Sizeuhren replica
Pitch10.0mm(.394")
poles 2P-26P
