Single Row Barrier Terminals

Home > Terminal Blocks > Single Row Barrier Terminals

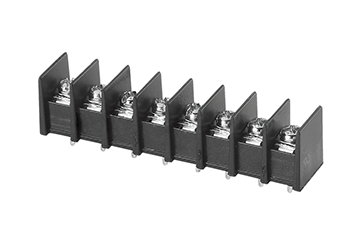

EX35C-8.25

Pitch: 8.25mm , M3, 300V, 15A

Material
Screw	M3.0，Steel，Ni Plated
Terminal	Brass，0.8t，Tin Plated
Plastic	PA66，UL94V-0

Electrical
Standard	UL	IEC
Rated voltage	300V	450V
Rated current	15A	24A
Wire range	22-14AWG	2.5mm2
Contact resistance	20mΩ
Insulation resistance	500MΩ/DC500V
Withstand Voltage	AC2000V/1Min

Mechanical
Temperature range	-40°C~+105°C
Max.Torque	0.5Nm (4.5Lb.in)

Size	imitatie horloges
Pitch	8.25mm(.325")
poles	2P-26P
