Rising Clamp Terminal Blocks
Home > Terminal Blocks > Rising Clamp Terminal Blocks

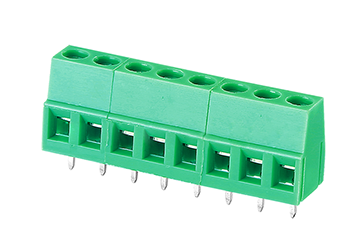

JM128V-5.0/5.08

Pitch : 5.0/5.08mm , 300V , 10A

PDF Download




Material
ScrewM2.5，steel Zinc plated
ClampBrass，Ni plated
Pin headerBrass,Tin plated
PlasticPA66，UL94V-0

Electrical
StandardUL IEC
Rated voltage300V250V
Rated current 10A 20A
Wire range22-12AWG2.5mm2
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand VoltageAC2000V/1Min

Mechanical
Temperature range-40°C~+105°C
Max.Torque0.4Nm (3.5Lb.in)
Strip length6-7mm

Size
Pitch5.0/5.08mm(.197")
poles 2P-24P
