Rising Clamp Terminal Blocks
Home > Terminal Blocks > Rising Clamp Terminal Blocks

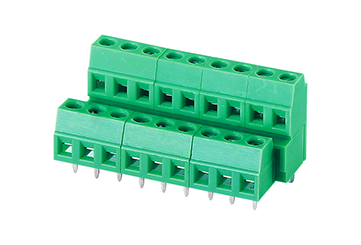

JM381B-3.5/3.81

Pitch : 3.5/3.81mm , 300V , 15A

PDF Download




Material
ScrewM2.0，steel Zinc plated
ClampBrass，Ni plated
Pin headerBrass,Tin plated
PlasticPA66，UL94V-0

Electrical
StandardUL IEC
Rated voltage300V250V
Rated current 15A 15A
Wire range30-14AWG1.5mm2
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand VoltageAC2000V/1Min

Mechanicalfalsi omega
Temperature range-40°C~+105°C
Max.Torque0.2Nm (1.75Lb.in)
Strip length5-6mm

Size
Pitch3.5mm(.138"),3.81mm(.150")
poles 2P-24P
