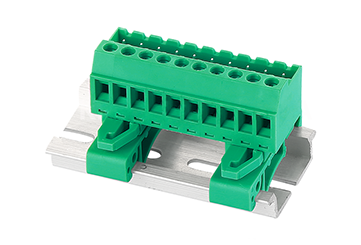

2EDGUVK-5.08

Pitch : 5.08mm , 300V , 15A

Material
Screw	M3.0，Steel，Zinc plated
Clamp	Brass，Ni plated
Pin header	Brass,Tin plated
Plastic	PA66，UL94V-0

Electrical
Standard	UL	IEC
Rated voltage	300V	450V
Rated current	15A	20A
Wire range	28-14AWG	2.5mm2
Contact resistance	20mΩ
Insulation resistance	500MΩ/DC500V
Withstand Voltage	AC2000V/1Min

Mechanical
Temperature range	-40°C~+105°C
Max.Torque	0.5Nm (4.5Lb.in)
Strip length	7-8mm

Size
Pitch	5.08mm(.200")
poles	2P-24P
