Wire Guard Terminal Blocks
Home > Terminal Blocks > Wire Guard Terminal Blocks

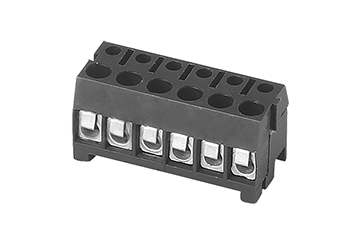

JM333K-3.5

Pitch : 3.5 mm , 300V , 8A

PDF Download




Material
ScrewM2.0，steel Zinc plated
Wire guardPhosphor bronze，Ni plated
Pin headerBrass，Tin plated
PlasticPA66，UL94V-0

Electrical
StandardUL IEC
Rated voltage300V250V
Rated current 8A 8A
Wire range24-18AWG1.0 mm2
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand VoltageAC2000V/1Min

Mechanical
Temperature range-30°C~+120°C
Max.Torque0.2Nm (1.7Lb.in)
Strip length5-6mm

Size
Pitch3.5mm(.138")
poles 2P-24P
