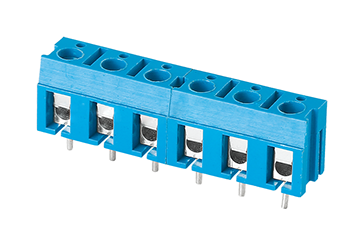

JM300-7.5

Pitch : 7.5 mm , 250V , 16A

Material
Screw	M3.0，steel Zinc plated
Wire guard	Phosphor bronze，Ni plated
Pin header	Brass，Tin plated
Plastic	PBT，UL94V-0

Electrical
Standard	UL	IEC
Rated voltage	250V	250V
Rated current	16A	24A
Wire range	22-14AWG	2.5mm2
Contact resistance	20mΩ
Insulation resistance	500MΩ/DC500V
Withstand Voltage	AC2000V/1Min

Mechanical
Temperature range	-30°C~+120°C
Max.Torque	0.5Nm (4.5Lb.in)
Strip length	4.5-5mm

Size
Pitch	7.5mm(.295")
poles	2P-24P
