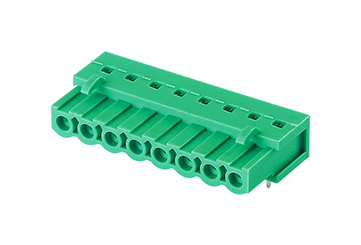

2EDGA-5.0/5.08

Pitch : 5.0/5.08mm ,  300V , 15A

PDF Download




Material and plating
Pin headerPhosphor bronze,Sn plated
Plastic
PA66，UL94V-0

Electrical Performance
Reference StandardUL IEC
Rated voltage300V450V
Rated current15A 20A
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand Voltage AC2000V/1Min

Mechanical
Temperature range -40°C~+105°C
Instantaneous temperature+250°C 5秒

Size
Pitch5.0mm(.197"),5.08mm(.200")
Poles 2P-24P
