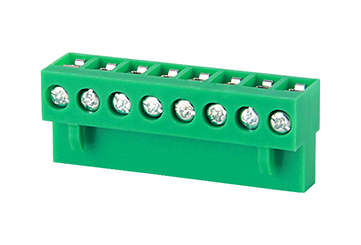

HT508K-5.08

Pitch : 5.08mm , M2.5 ,  300V , 10A

PDF Download




Material and plating
Screw
M2.5，Steel，Zinc plated
Wire guard
Brass，Ni plated
ProtectorBrass,Ni plated
Plastic
PA66，UL94V-0

Electrical Performance
Reference StandardUL IEC
Rated voltage300V450V
Rated current10A 15A
Wire range 22-14AWG 2.5mm2
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand Voltage AC2000V/1Min

Mechanical
Temperature range -40°C~+105°C
Max.Torque0.4Nm (3.6Lb.in)
Strip length6-7mm

Size
Pitch5.08mm(.200")
Poles 2P-24P
