PCB Terminal Blocks-Plug
Home > Terminal Blocks > PCB Terminal Blocks-Plug

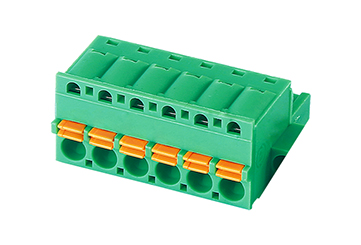

2EDGKDM-5.0/5.08

Pitch : 5.0/5.08 mm ,  300V , 15A

PDF Download



Material and plating
Wire guard
Stainless steel(SUS301)
ClampPhosphor bronze,Ni plated
Plastic
PA66，UL94V-0

Electrical Performance
Reference StandardUL IEC
Rated voltage300V450V
Rated current15A 20A
Wire range 28-14AWG 2.5mm2
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand Voltage AC2000V/1Min

Mechanical
Temperature range -40°C~+105°C
Max.Torque0.5Nm (4.5Lb.in)
Strip length7-8mm

Size
Pitch5.0mm(.197"),5.08mm(.200")
Poles 2P-24P
