PCB Terminal Blocks-Plug
Home > Terminal Blocks > PCB Terminal Blocks-Plug

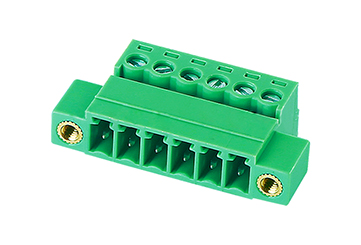

15EDGKRP-3.81

Pitch : 3.81 mm , M2.0,  300V , 8A

PDF Download





Material
Screw
M2.0, Steel, Zinc plated
ConductorBrass, Sn plated
CageBrass, Ni plated
Plastic
PA66, UL94V-0

Electrical
StandardUL IEC
Rated voltage300V250V
Rated current8A 10A
Wire range 28-16AWG 1.5mm2
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand Voltage AC2000V/1Min

Mechanical
Temperature range -40°C~+105°C
Max.Torque0.2Nm (1.7Lb.in)
Strip length7-8mm

Sizefake bags
Pitch3.81mm(.150")
Poles 2P-24P
