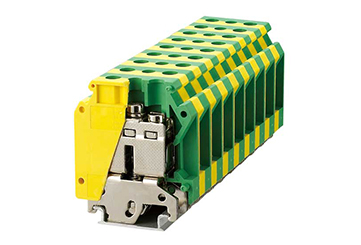

UK Din Rail Terminal Blocks

Pitch : /, M6 , 1000V , 115A

Material

Tightening Torque:Screw Thread/Tightening Torque	M6/2.5Nm
Tightening Torque(Fixing Screw):Screw Thread/Tightening Torque	M6/2.5Nm
Plastic	PA66，UL94V-0

Electrical
Standard	UL	IEC
Rated voltage	1000V	1000V
Rated current	115A	125A
Wire range	18AWG	0.2-35mm2
Internal Cylindrical Gage	B9
Stripping Length	15mm
Rated Surge Voltage	8KV

Mechanical
Temperature range	-40°C~+105°C
Tightening Torque	/

Size
T/W/End plate	15.2/55/-mm
Height (NS35:7.5/NS35:15/N32)	62/69.5/67mm
