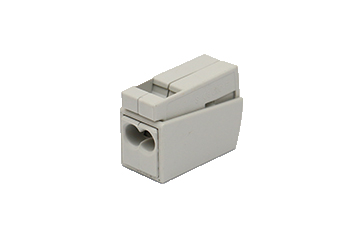

PCT-101B

Pitch : / , 300V , 20A

Material and plating
Contact material	Phosphor bronze
Spring clamp	Stainless steel
Contact point coating	Tin Plated
Plastic	PA66，UL94V-0

Electrical Performance
Reference Standard	/	/
Rated voltage	300V	/
Rated current	20A	/
Use wire	20-16AWG	0.5-2.5mm²
Contact resistance	/
Insulation resistance	/
Dielectric	AC4000V/1Min

Mechanical properties
Temperature range	-40°C~+105°C
Strip length	9-11mm

Size
Pitch	/
Number of poles	1P
