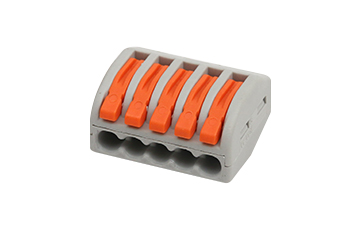

PCT-215

Pitch : / , 250V , 24A

Material and plating
Contact material	Phosphor bronze
Spring clamp	Stainless steel
Contact point coating	Tin Plated
Plastic	PA66，UL94V-0

Electrical Performance
Reference Standard	/	/
Rated voltage	250V	/
Rated current	24A	/
Use wire	0.08-4.0mm2	4.0mm2
Contact resistance	20mΩ
Insulation resistance	500MΩ/DC500V
Dielectric	AC4000V/1Min

Mechanical properties
Temperature range	-40°C~+105°C
Strip length	9-11mm

Size
Pitch	/
Number of poles	2P-5P
